1. General Description
RK3288V5.0 belongs to the intelligent motherboard of Intelligent main board for commercial display, which is generally applicable to: advertisement machine, digital signage, intelligent self-service terminal, intelligent retail terminal, O2O intelligent equipment, industrial control host, robot equipment, etc.The board size supports HDMI-IN and HDMI-OUT. with thin and small size design.
RK3288V5.0 adopts RK3288 Cortex-A17 quad-core processor, which is equipped with Android 7.1 system. The main frequency is up to 1.8GHz, with super performance.Use Mali-t764 GPU and support 4K, H.265 hard decoding.Whether the game, running score or decoding is super - class, is your best choice in man-machine interaction, industrial control projects.
Support for dual-screen output, such as single LVDS(LVDS+EDP） ,LVDS+MIPI,EDP+MIPI
Support RTC real-time clock
Support for USB interface and mipi interface camera input, Mipi Camera up to 1300 W pixels
RJ45 supports 10M/100M Network Interface Card Interface
Support for built-in 2.5socket+external DC2.0 socket support input + DC 12V power supply interface.
HIFI stage DAC decoder chip high sampling rate low distortion digital audio amplifier
There are 6 USB interfaces (4 pins,2 standard USB ports),Serial port (TTL level), GPIO/ADC, etc, which can meet the requirements of various peripherals in the market
High definition.The largest supports 4K 3840x2160 decoding and various LVDS/eDP/MIPI interface LCD display, and supports cutting screen of all sizes and resolutions
2. Products Features
Board | RK3288V5.0 | ||||
Chipset | Chip | RK3288 Cortex-A17 quad-core processor | |||
Memory | DDR III 2G(4G Option) | ||||
Storage | eMMC 8G(16/32/64G Option) | ||||
OS | Android7.1 | ||||
Interface | Input | wifi/BT | 2.4G/BT4.2 | ||
usb | 2 standard USB ports，include one USB-OTG | ||||
4 pins | |||||
Uart | 4 Serial port(TTL Level) | ||||
Ethernet | 10/100M Adaptive Ethernet RJ45 connector | ||||
HDMI-IN/TF | TF 128G/HDMI1.4 | ||||
MIC | 2pin 2.0mm white | ||||
Extend GPIO | 6pin 2.0mm white 4 GPIO | ||||
IIC | 6pin 2.0mm TP | ||||
Output | LVDS | FHD 1920x1080@60HZ | |||
EDP | FHD 1920x1080@60HZ | ||||
HDMI2.0 | UHD 3840x2160@60HZ | ||||
Speaker | 4pin 2.0mm white. Support left and right channel output, built-in double 8R/5W amplifier | ||||
Earphone | Earphone | ||||
Features | Support for dual-screen output, such as single LVDS(LVDS+EDP） ,LVDS+MIPI,EDP+MIPI | ||||
Video Format Support | wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4 | ||||
Image Format Support | BMP、JPEG、PNG、GIF | ||||

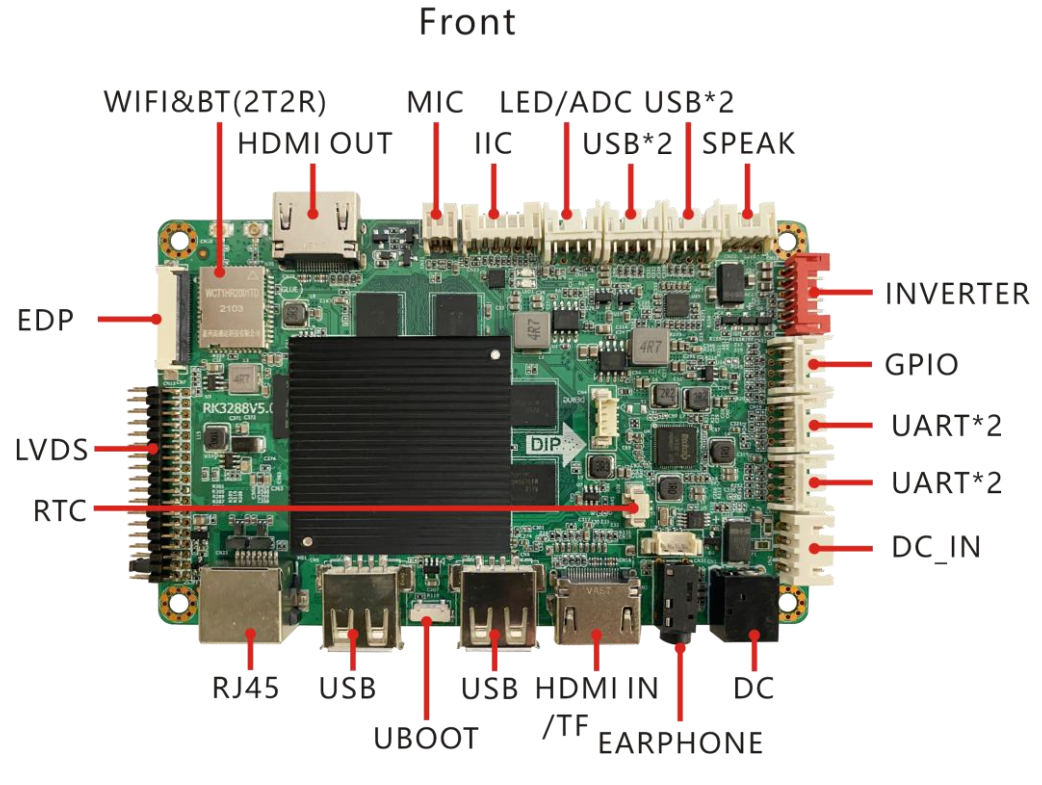

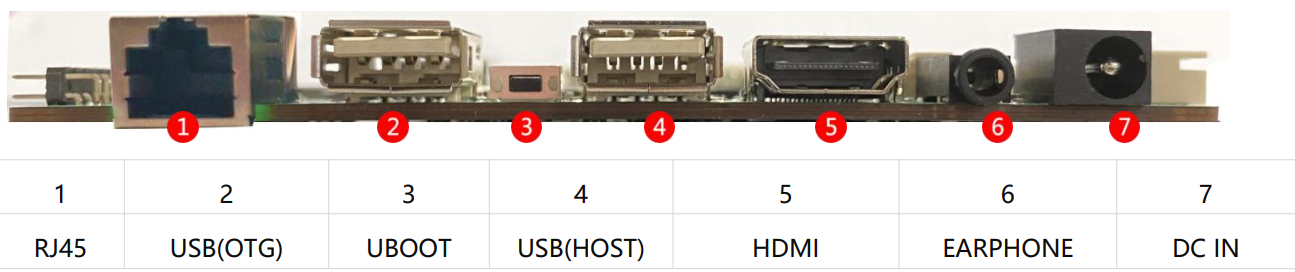

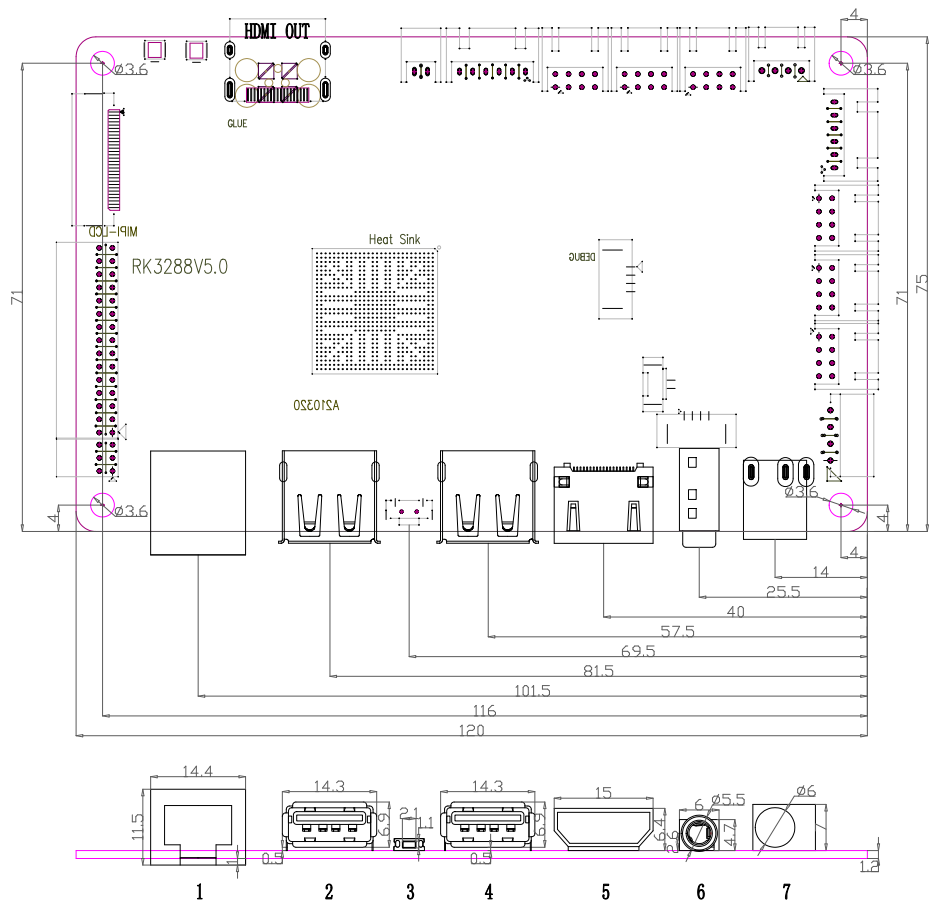

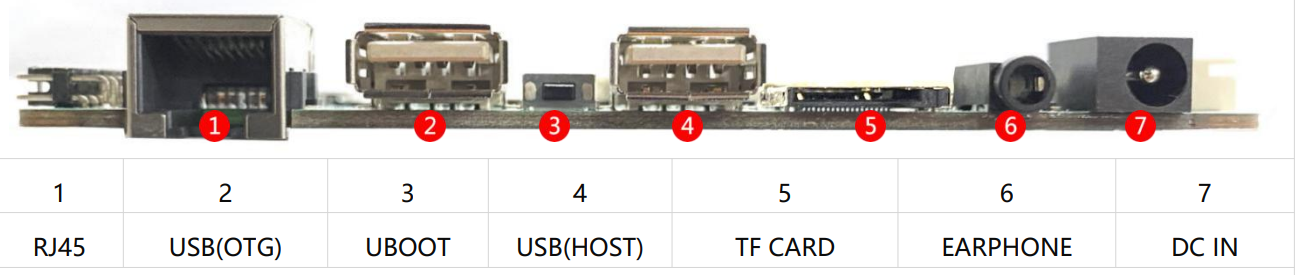

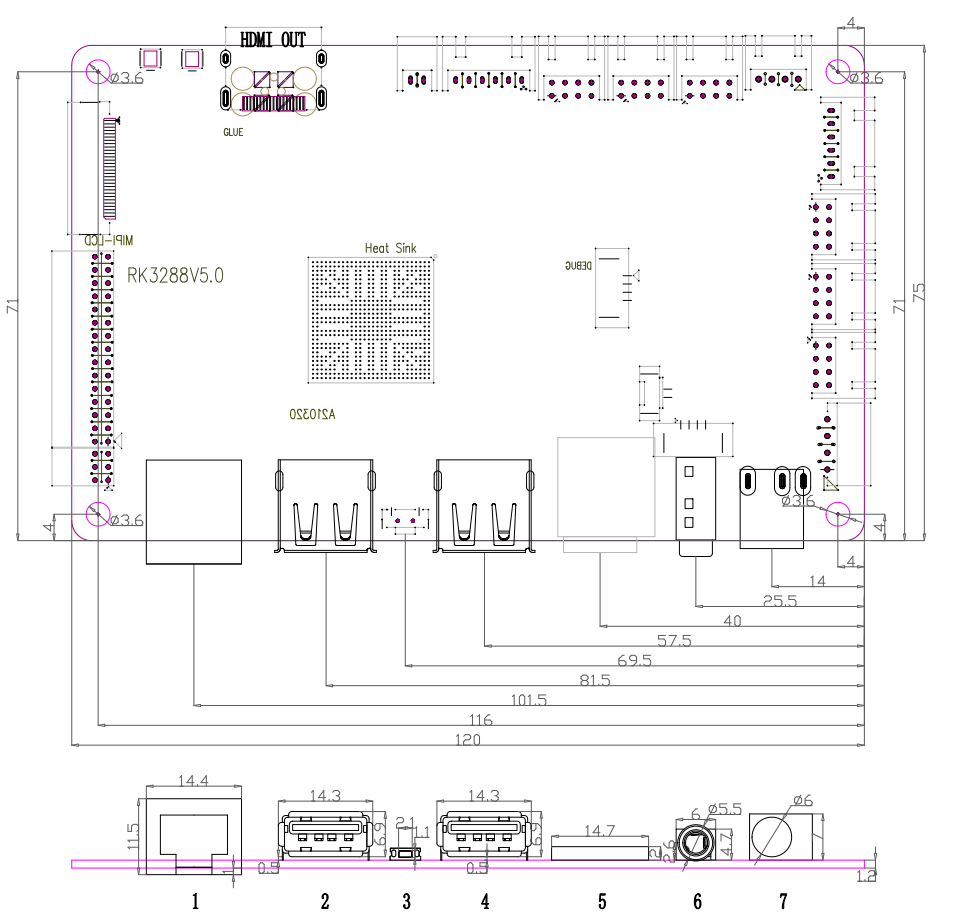

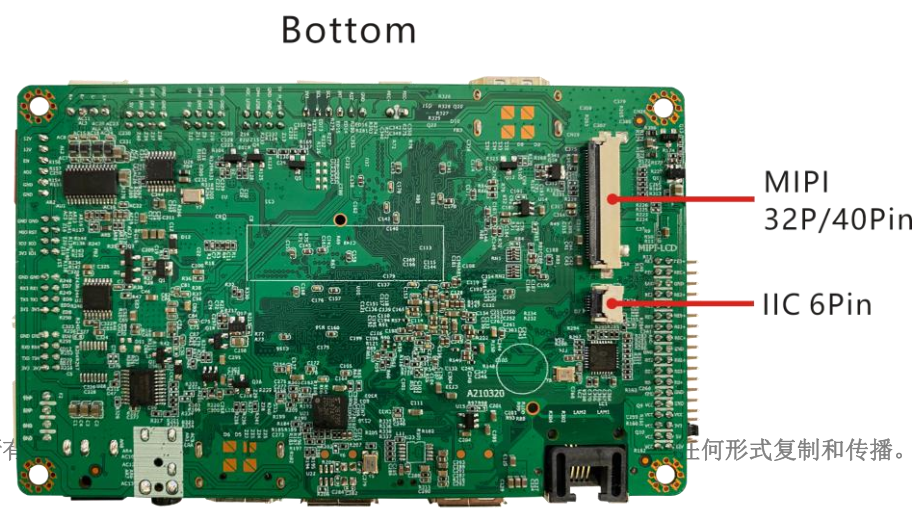

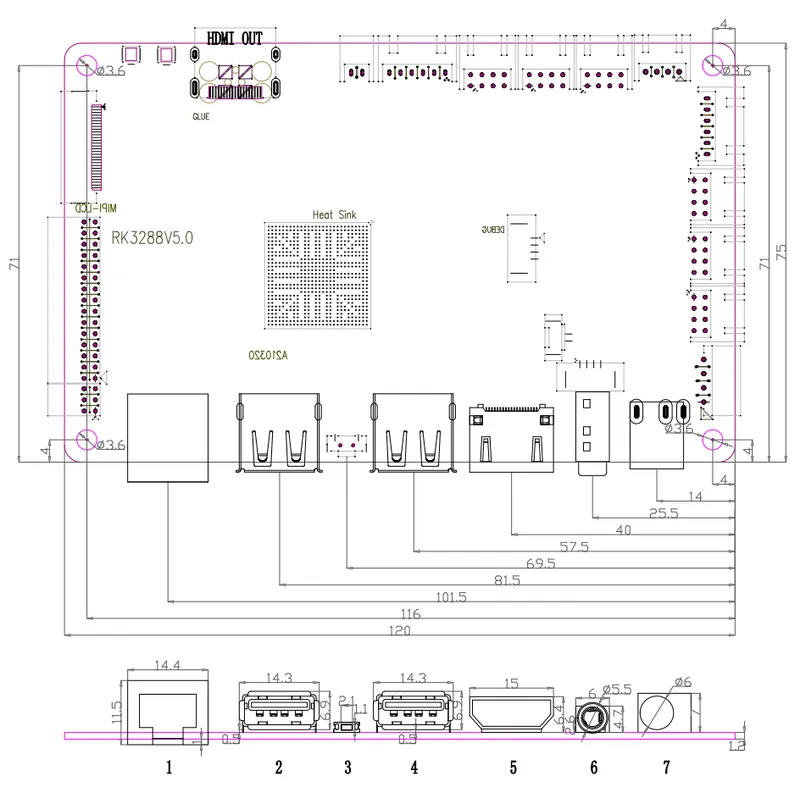

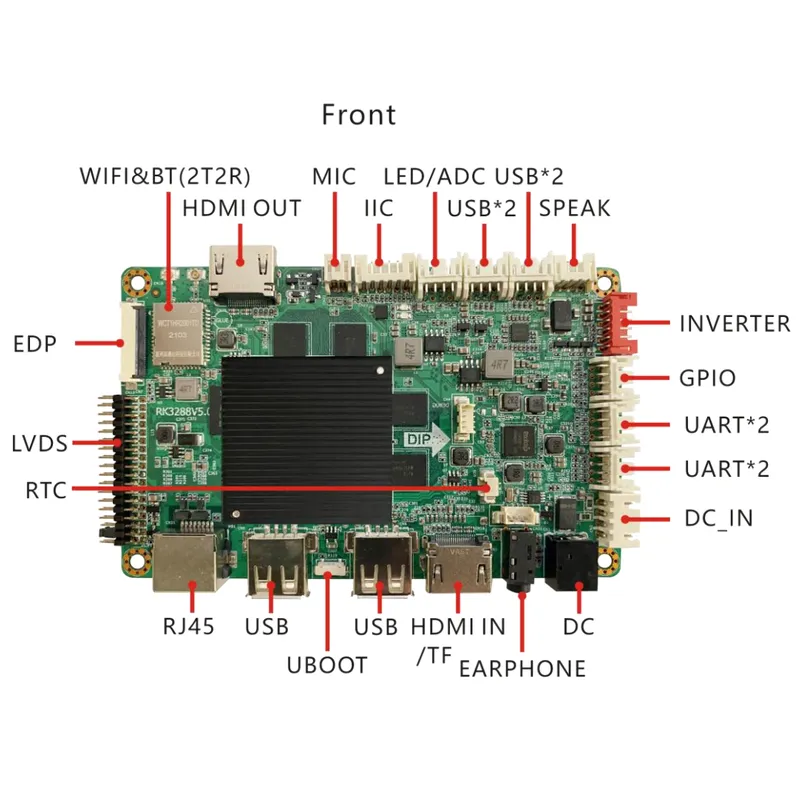

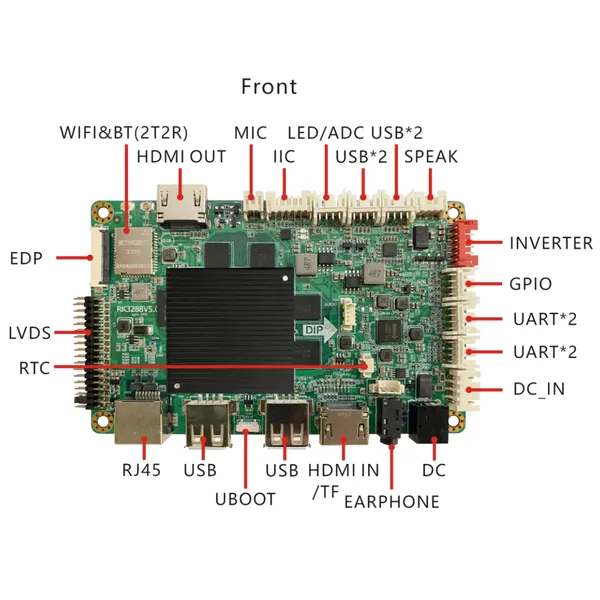

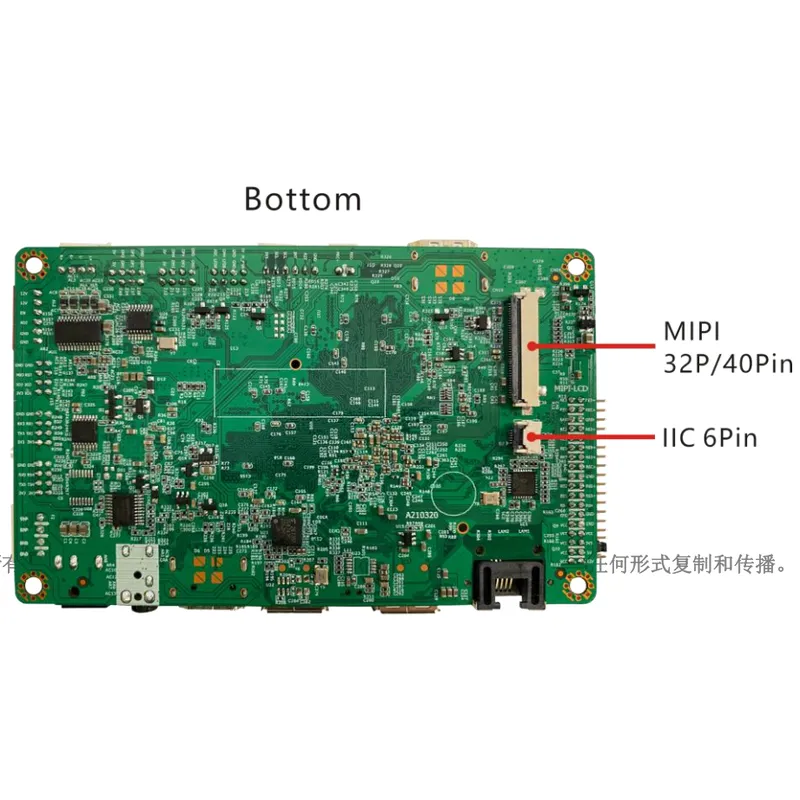

3. Port Configuration
