1. General Description
MST9U13Q1 a total chip SOC that for LCD monitors with panel resolutions up to 4096X2160@60Hz.
2. Key features include:
1.Integrated four High-quality scaling engine for processing up to 2K@60Hz AV Stream.
2.Integrated 4 Combo Digital Ports (Supports HDMI/ HDMI / HDMI /DP);
3.Built-in e-DP transmitter, supports up to 4096X2160@60Hz LCD Panel.
4.Supports four windows PIP/PBP.
3. Audio interface
1. Built-in high-performance amplifier.

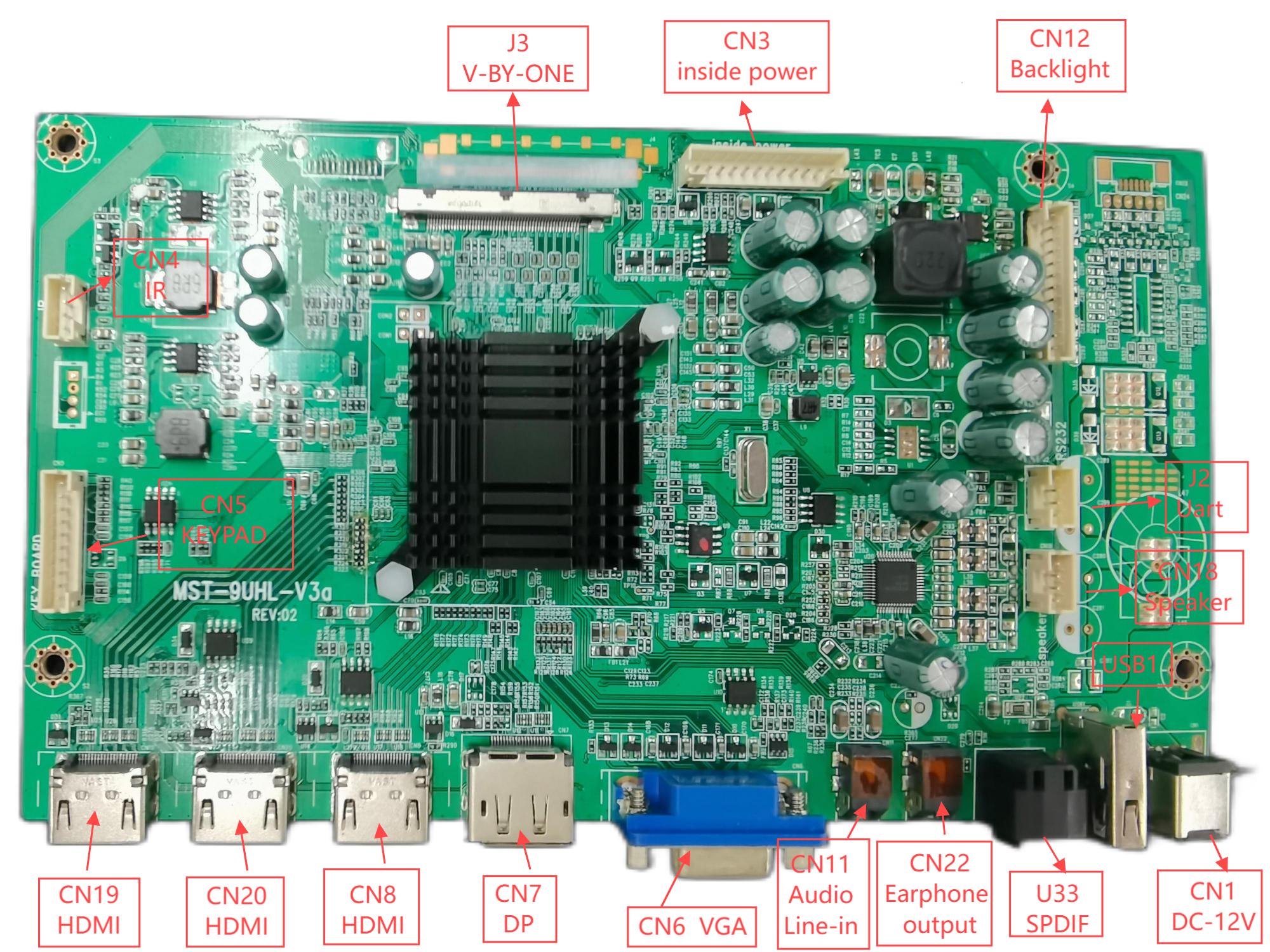

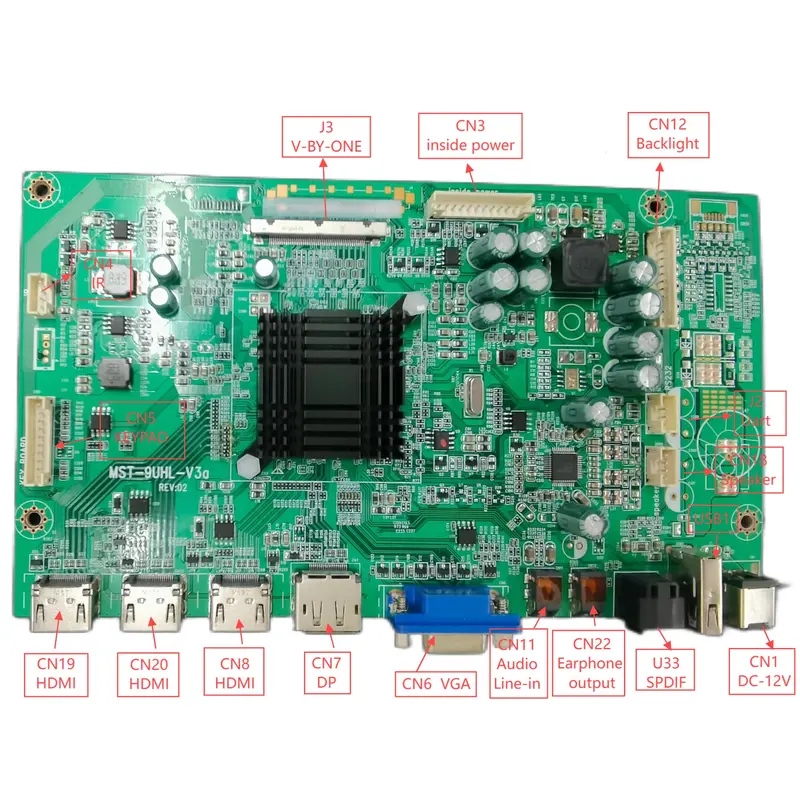

Board | MST-9UHL-V3a | ||
Chip | MST | ||
Interface | Input | HDMI2.0 | 19Pin SMT horizontal |
Max support for input 3840X2160@60HZ | |||
Support HDCP2.2 | |||
HDMI1.4 | 19Pin SMT horizontal | ||
Max support for Input 3840x2160@30HZ | |||
Support HDCP2.2 | |||
HDMI1.4 | 19Pin SMT horizontal | ||
Max support for Input 3840x2160@30HZ | |||
Support HDCP2.2 | |||
DP1.2A | 20 pin SMT horizontal | ||
Max support for Input 3840X2160@60HZ,HBR2 SST | |||
Output | v by 1 | UHD 3840x2160 | |
EDP | UHD 3840x2160 8 lane 2.7Gbps link | ||
Earphone output | PJ-325-5P Blue horizontal | ||
Power | DC | DC12V(+/-10%) | |
PanelVcc | +12V | ||
Power Mode | Normal，Standby | ||
Standby Power | <0.25W | ||
Backlight-LED | Output Electricity | Max:600mA(300mA~600mA software Adjust) | |
Output Voltage | 50V | ||
Protection Voltage | 70±3v | ||
Max Power | 30W | ||
Feature | OSD Language | ZH，EN，FR，DE，IT，ES，RU，KR，JP | |
Keypad | support 7key/5key | ||
FreeSync | suport | ||
