1. General Description
MST9U13Q1 a total chip SOC that for LCD monitors with panel resolutions up to 4096X2160@60Hz.
2. Key features include:
1.Integrated four High-quality scaling engine for processing up to 2K@60Hz AV Stream.
2.Integrated 4 Combo Digital Ports (Supports HDMI/ HDMI / HDMI /DP);
3.Built-in e-DP transmitter, supports up to 4096X2160@60Hz LCD Panel.
4.Supports four windows PIP/PBP.

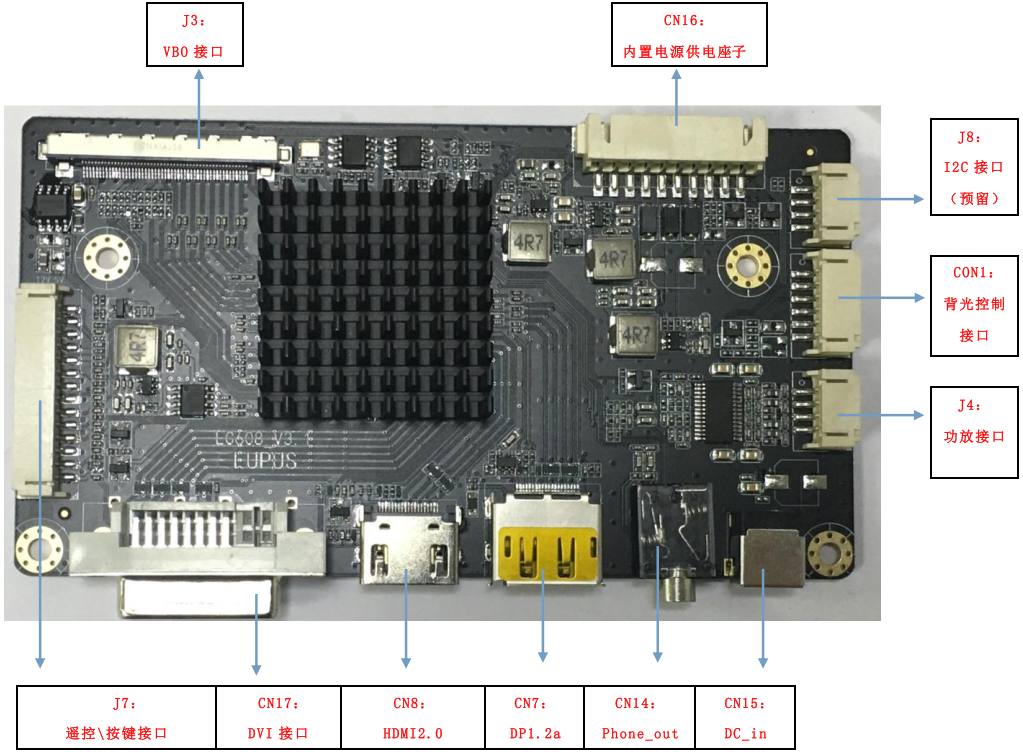

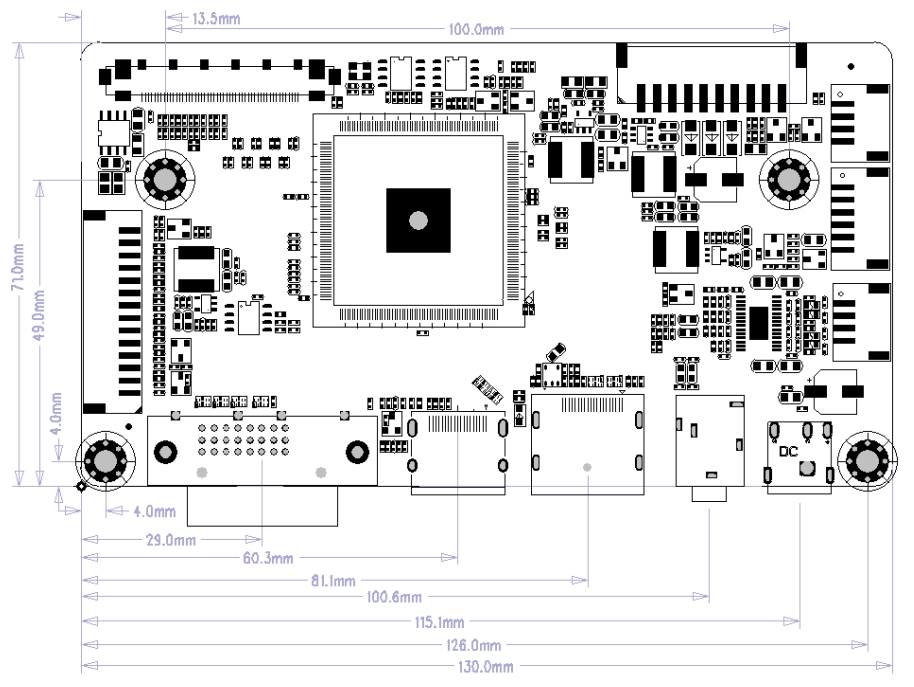

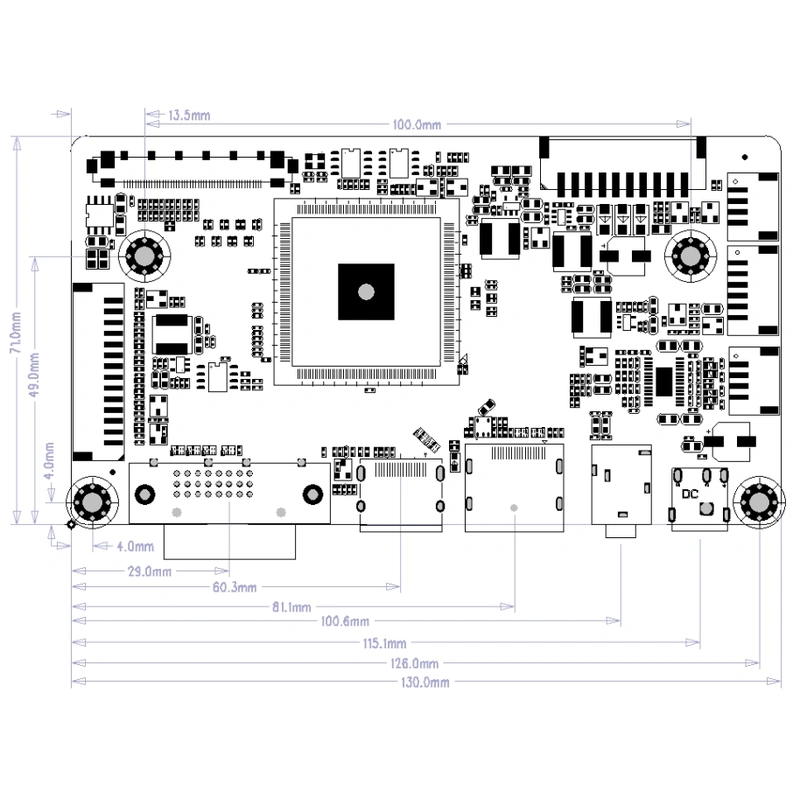

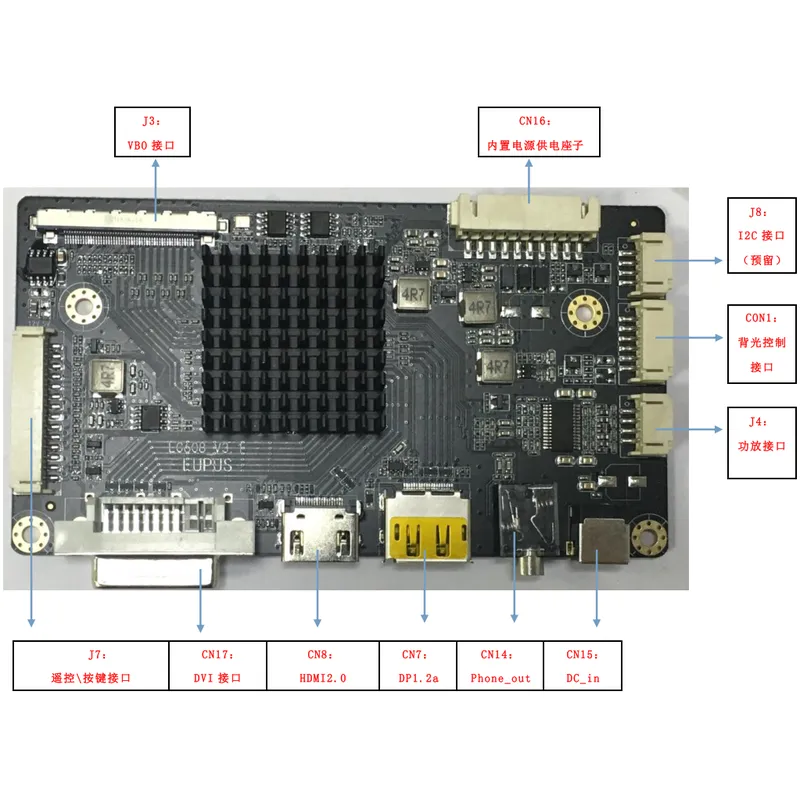

Board | LC608-V3.1 | ||
Chip | MST | ||
Interface | Input | HDMI2.0 | 19Pin SMT horizontal |
Max support for input 3840X2160@60HZ | |||
Support HDCP2.2 | |||
DVI-D（Single link） | Video Bandwidth: < 165MHz | ||
WUXGA(1920×1200)@ 60 Hz TMDS: 600mV for each differential line Input Impedance:50 ohm | |||
Support HDCP2.2 | |||
DP1.2A | 20 pin SMT horizontal | ||
Max support for Input 3840X2160@60HZ,HBR2 SST | |||
Output | v by 1 | 8lane UHD 3840x2160 | |
Head phone | 3.5mm | ||
Power | DC | DC12V(+/-10%)/12V+5V+5VS | |
PanelVcc | +12V | ||
Power Mode | Normal，Standby | ||
Standby Power | <0.25W | ||
Feature | OSD Language | ZH，EN，(FR，DE，IT，ES,OPT) | |
Keypad | support 7key/5key | ||
FreeSync | suport | ||
