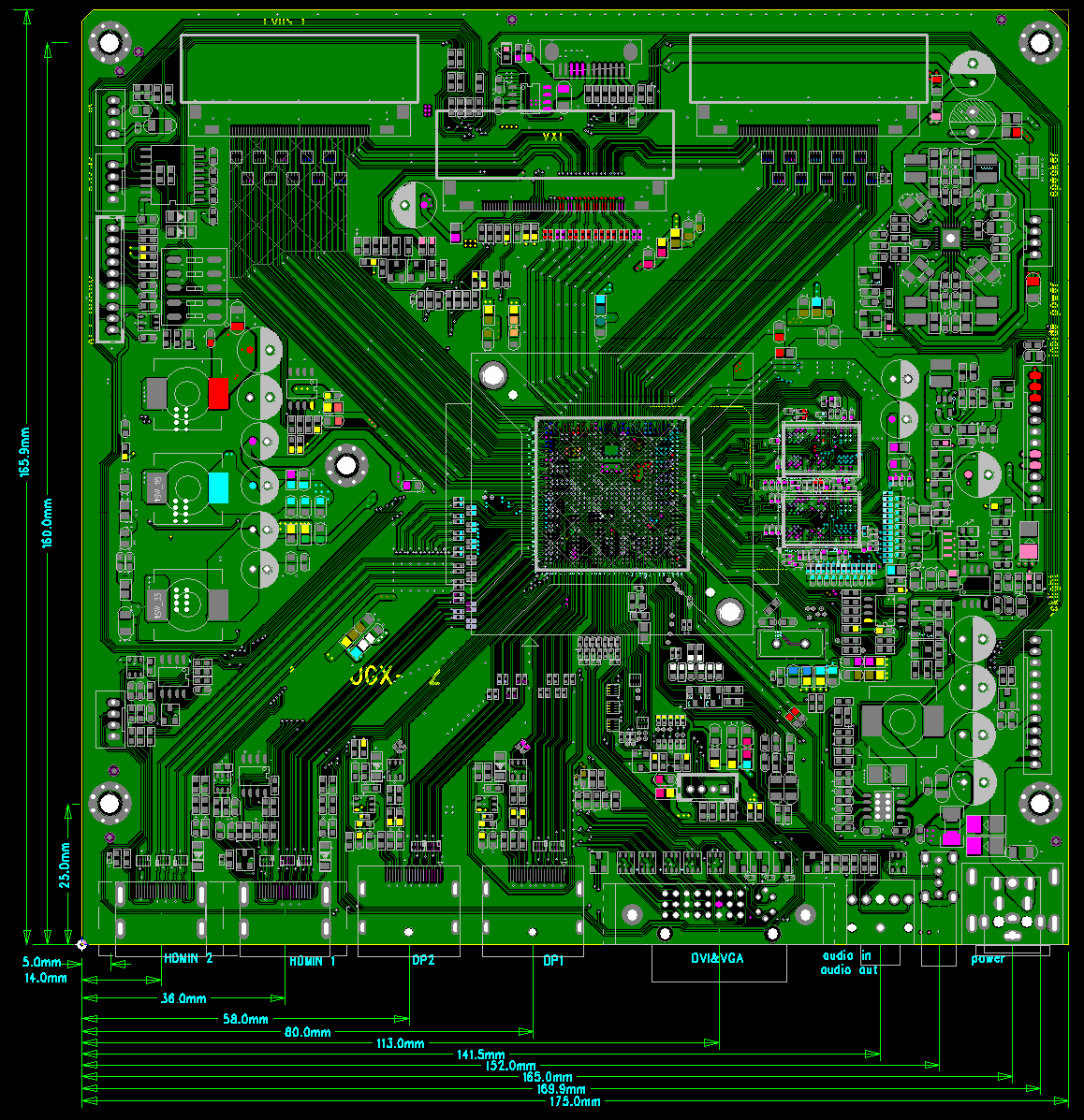

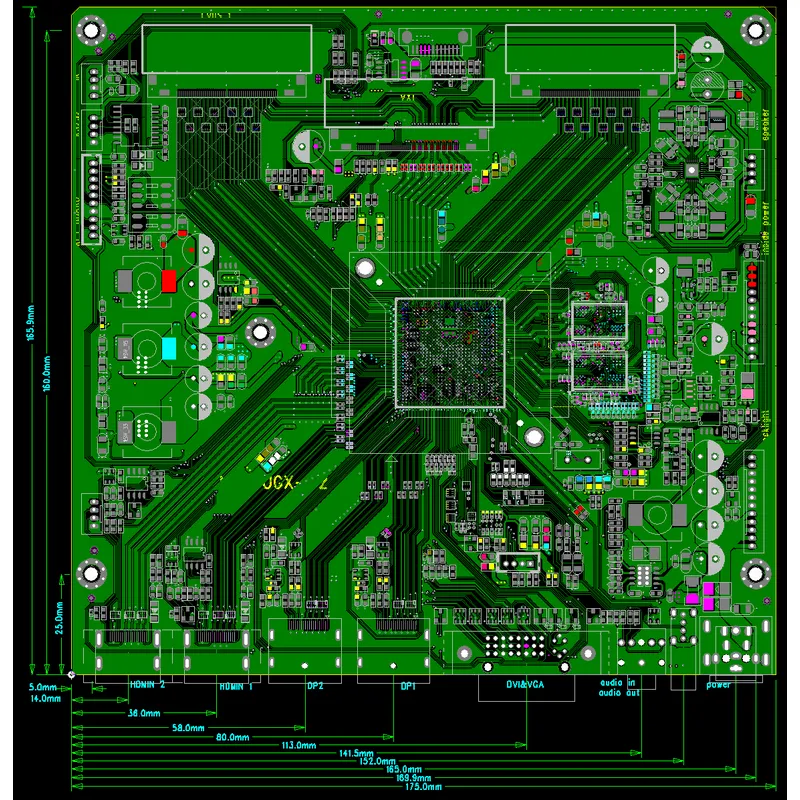

MST9UXV2.2

 1. General Description

        MST9U01V1 a total chip SOC that for LCD monitors with panel resolutions up to 4096x2160@60Hz.

  2. Key features include:

      1.Integrated four High-quality scaling engine for processing up to 4 4K2K@30Hz AV Stream.

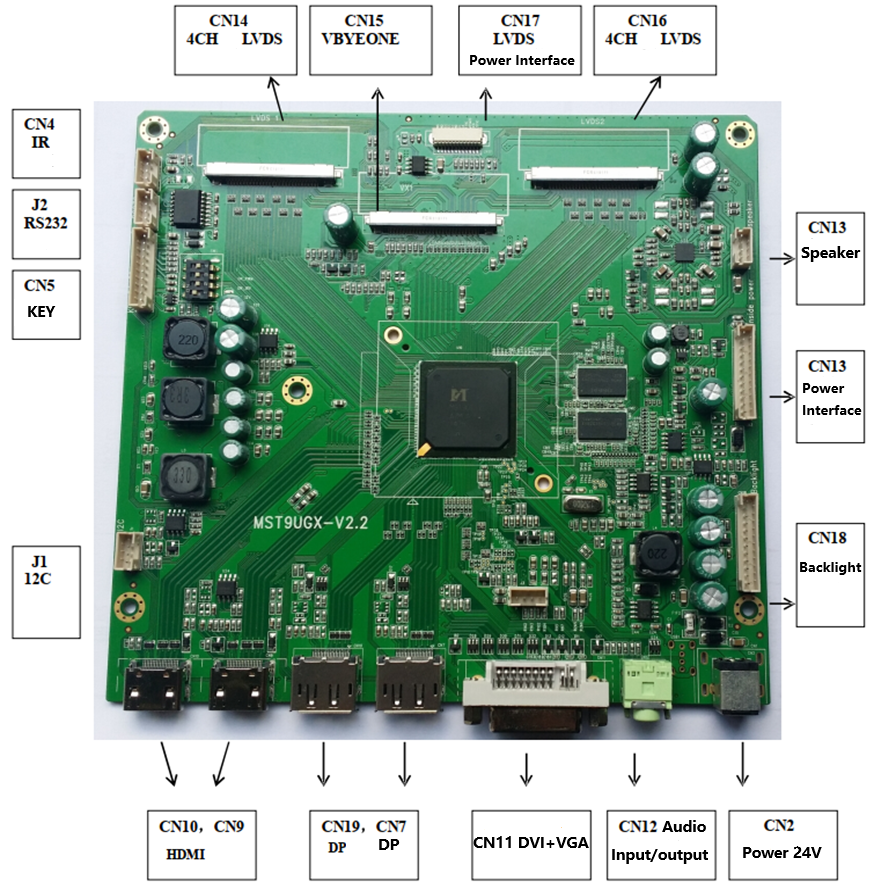

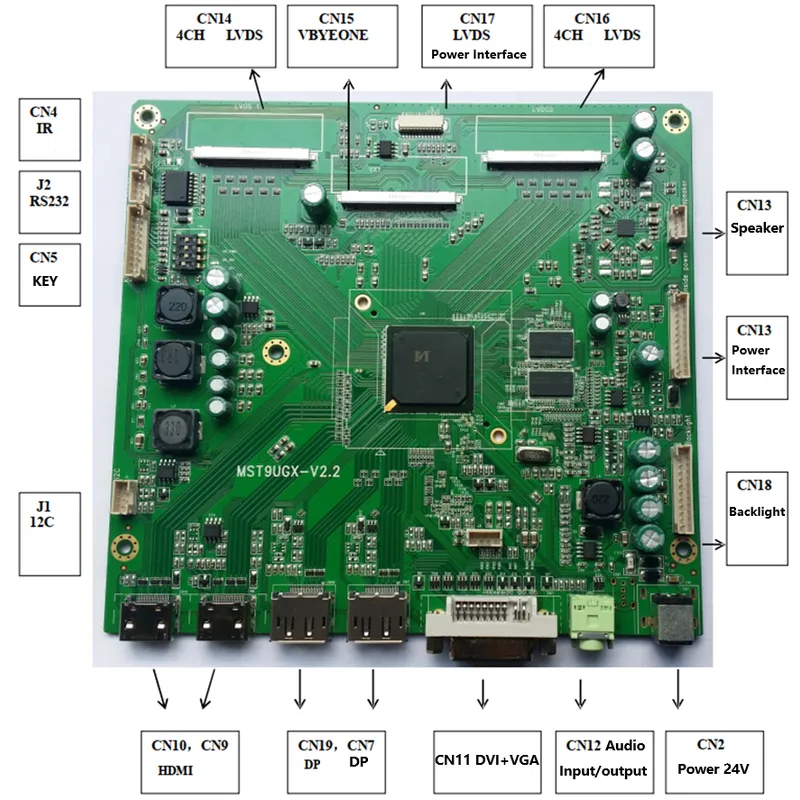

      2.Integrated 6 Combo Digital Ports (Supports HDMI/DVI/DP/MHL) and 1 Analog Input Ports (Supports Analog RGB Compliant Input Ports);

     3.Built-in LVDS/eDP（Optional，supported by adapter）/V-by-one transmitter, supports up to 4096x2160@60Hz LCD Panel.

     4.Supports audio in/out with L/R stereo.

     5.Supports up to four windows PIP/PBP with any inputs.

     6. DVI-I Analog RGB Compliant Input.  One Analog VGA inputs, Supports up to 205Mhz (up to UXGA@75Hz) .

 3. Audio interface

   1. Built-in high-performance amplifier.
