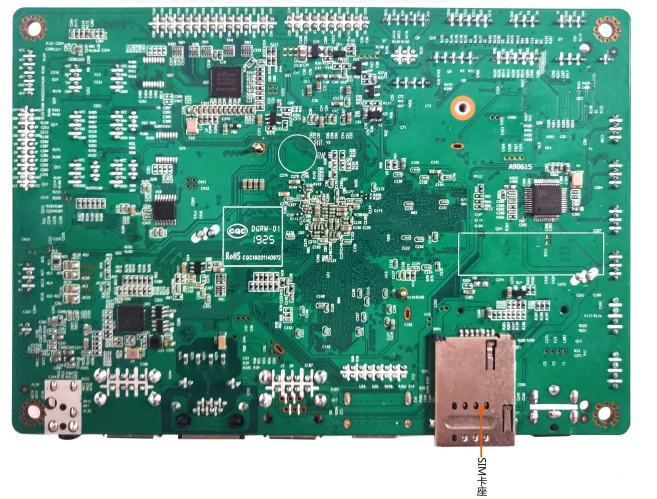

1. General Description
RK3288V3.0 belongs to the intelligent motherboard of Intelligent main board for commercial display, which is generally applicable to: advertisement machine, digital signage, intelligent self-service terminal, intelligent retail terminal, O2O intelligent equipment, industrial control host, robot equipment, etc.The board size supports HDMI-IN and HDMI-OUT. with thin and small size design.
RK3288V3.0 adopts RK3288 Cortex-A17 quad-core processor, which is equipped with Android 7.1 system. The main frequency is up to 1.8GHz, with super performance.Use Mali-t764 GPU and support 4K, H.265 hard decoding.Whether the game, running score or decoding is super - class, is your best choice in man-machine interaction, industrial control projects.
Support for dual-screen output, such as dual EDP(EDP+EDP) and single LVDS(LVDS+EDP）
Support RTC real-time clock
Support for USB interface and mipi interface camera input, Mipi Camera up to 1300 W pixels
RJ45 supports 10M/100M Network Interface Card Interface
Support for built-in 2.5socket+external DC2.0 socket support input + DC 12V power supply interface.
HIFI stage DAC decoder chip high sampling rate low distortion digital audio amplifier
There are 8 USB interfaces (4 pins,4 standard USB ports),3 and 6 RS232 serial ports are optional, of which 1 RS485 is optional and GPIO/ADC interfaces, which can meet the requirements of various peripherals in the marke
High definition.The largest supports 4K 3840x2160 decoding and various LVDS/eDP interface LCD display, and supports cutting screen of all sizes and resolutions
Equipped with PCI-E 4G module, Support Huawei, Longshang and other PCI-E 3G/4G modules to access the Internet
2. Products Features
Board | RK3288V3.0 | ||
Chipset | Chip | RK3288 Cortex-A17 quad-core processor,up to 1.8GHz | |
Memory | DDR III 2G(4G Option) | ||
Storage | eMMC 8G(16/32/64G Option) | ||
OS | Android7.1 | ||
Interface | Input | wifi/BT | 2.4G/BT4.2 |
usb | 4 standard USB ports，include one USB-OTG | ||
4 pins | |||
Uart | 6 Serial port(TTL Level) | ||
Ethernet | 10/100M Adaptive Ethernet RJ45 connector | ||
PCI-E | Built-in PCI-E interface 3G/4G network | ||
MIC | 2pin 2.0mm white | ||
| Micro SD Card | Self-elastic micro SD card socket, up to 128GB capacity | ||
Extend GPIO | 6pin 2.0mm white 4 GPIO | ||
IIC | 6pin 2.0mm TP | ||
Output | LVDS | 1single/double channel FHD 1920x1080@60HZ | |
EDP | Can directly drive a variety of resolution eDP interface LCD screen | ||
HDMI2.0 | HDMI 2.0 standard display interface supports up to 4K@60Hz output | ||
Amplifier | 4pin 2.0mm white. Support left and right channel output, built-in double 4R/8W,8R/6W amplifier | ||
Earphone | Support standard Earphone output | ||
Features | Support for dual-screen output, such as single LVDS(LVDS+EDP） ,LVDS+MIPI,EDP+MIPI | ||
Video Format Support | wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4 | ||
Image Format Support | BMP、JPEG、PNG、GIF | ||

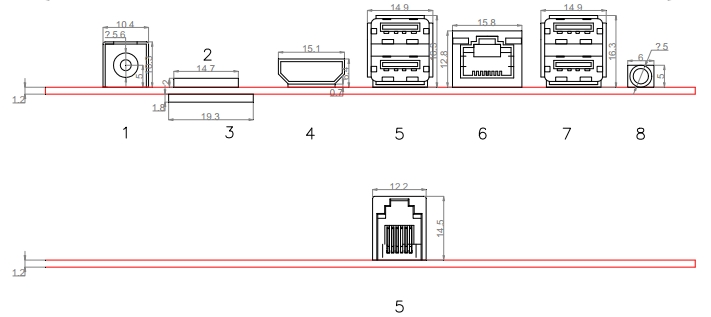

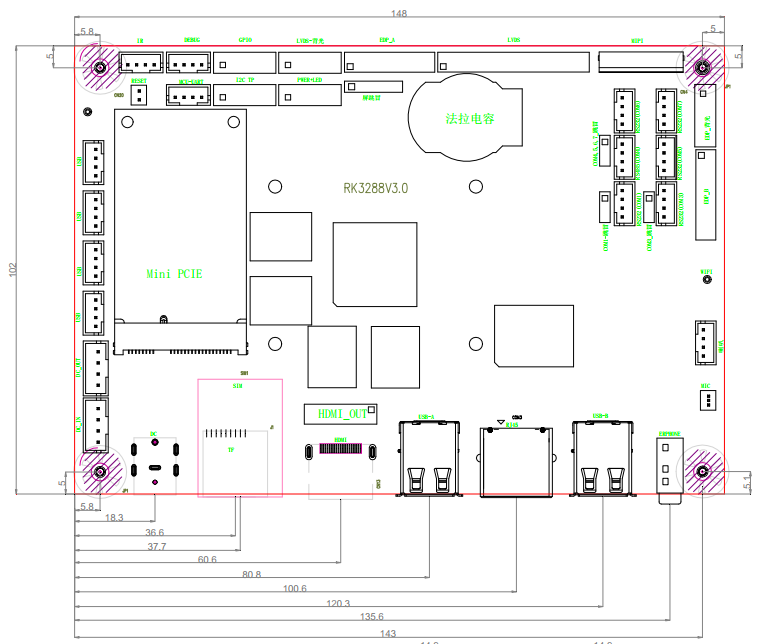

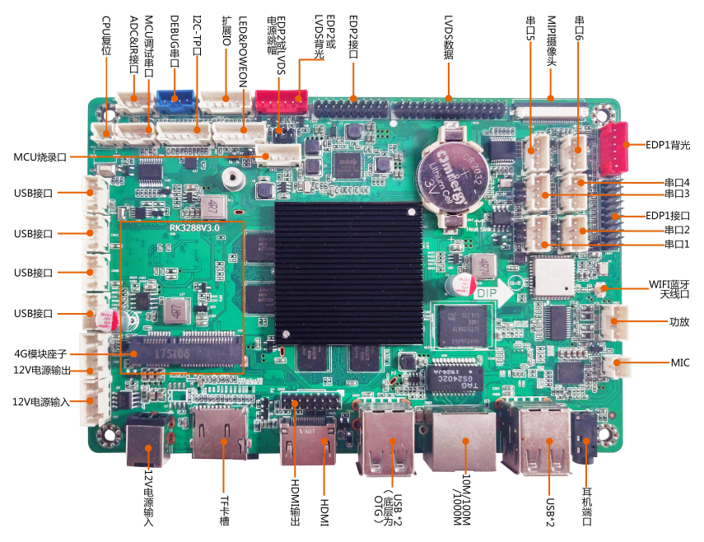

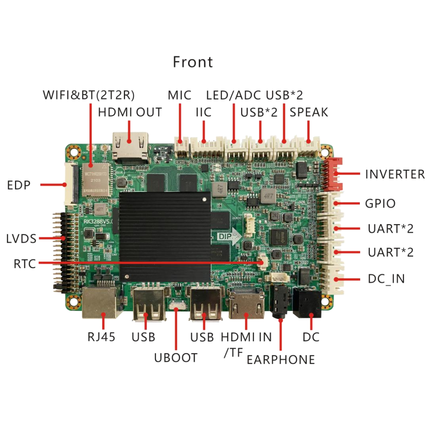

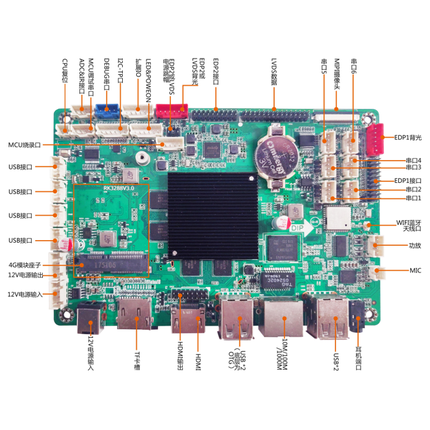

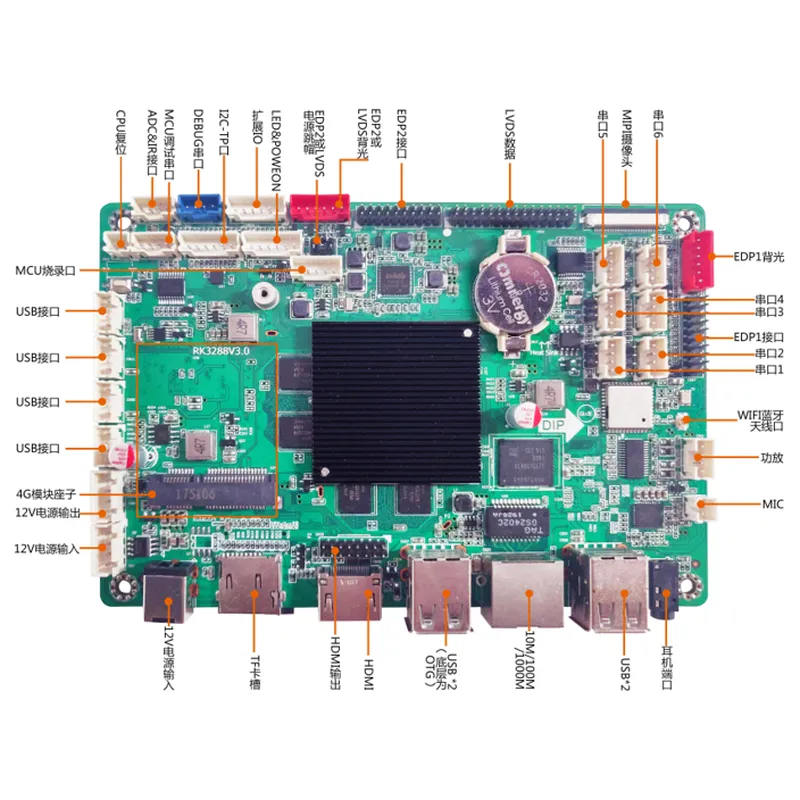

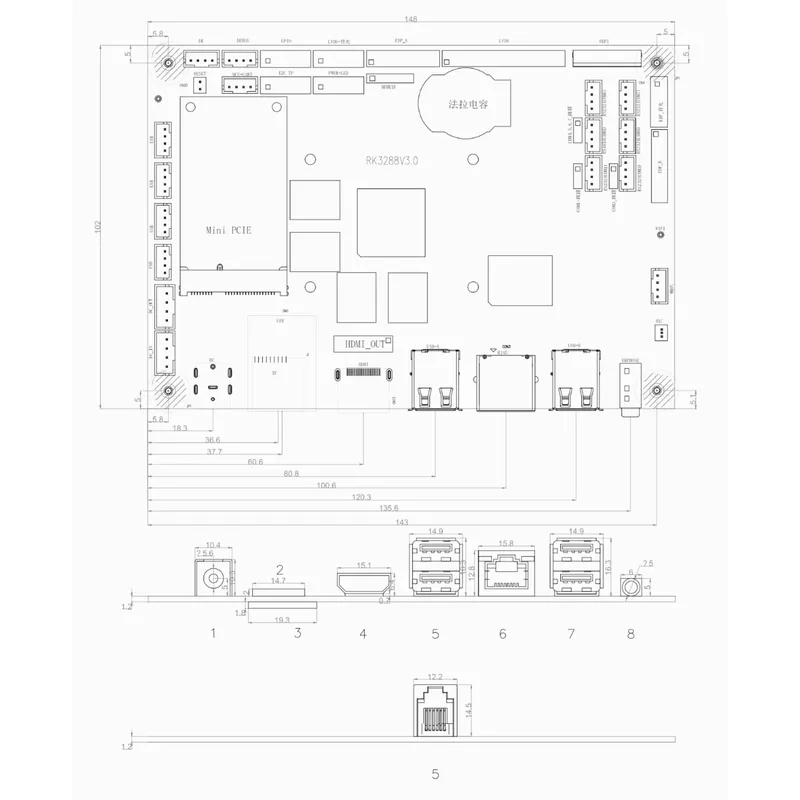

3. Port Configuration
