1. General Description
MST98A0Q1 a total chip SOC that for LCD monitors with default panel resolutions up to 1920X1080@60Hz.Max support panel resolutions up to 3840x2160@60hz.
2. Key features include:
1.Integrated four High-quality scaling engine for processing up to 2K@60Hz AV Stream.
2.Integrated 4 Combo Digital Ports (Supports 3G-SDI/ Single link DVI-D / HDMI2.0 /DP);
3. 3G-SDI/DVI Support Loop out.
4.Supports four windows PIP/PBP.
5. Support DDC,RS232 Communication interface.
6. Support VGA/RGBs Composite video Input port
7. Language: English /中文 /Español /Português /Français / Deutsch /Italiano /русский /Polski/ العربیة ال

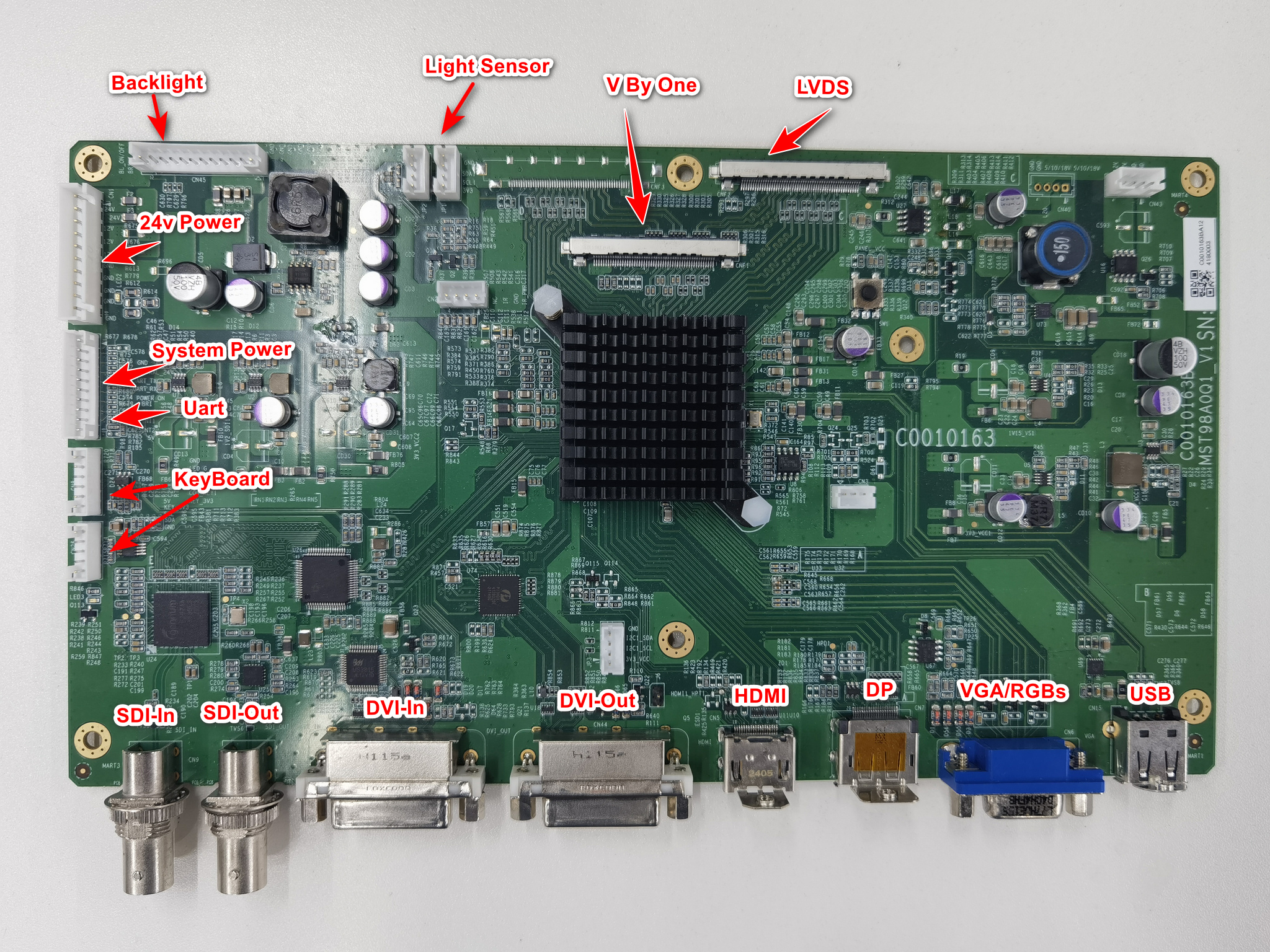

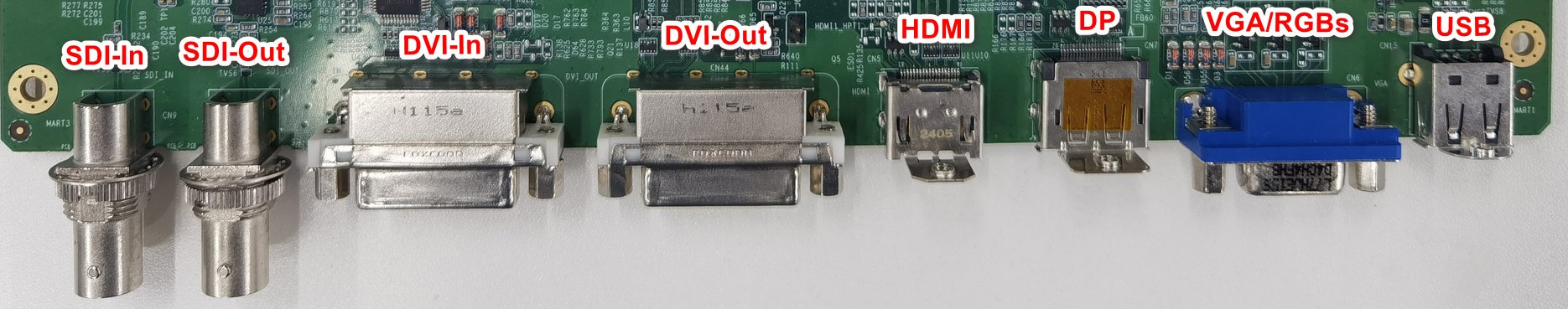

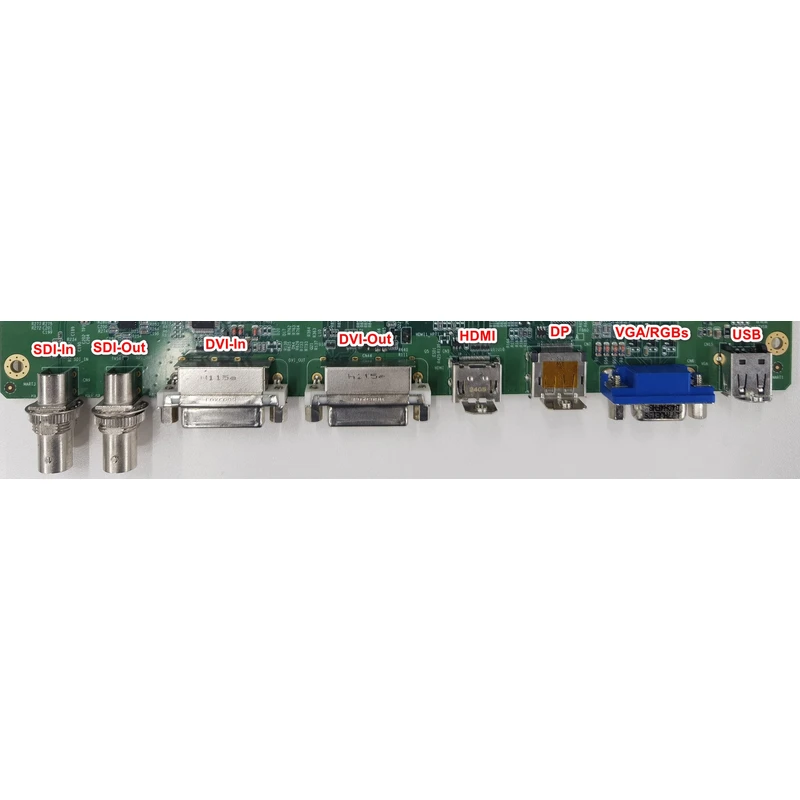

3. Interface
3.1 Signal technical specification
Signal | Specification | |
DVI-D | Single link | Video Bandwidth: < 165MHz TMDS: 600mV for each differential line Input Impedance: 50 ohm |
VGA/RGB | Frequency | Horizontal:15 ~ 82kHz Vertical:30 ~ 85Hz |
Video Bandwidth | <205 MHz | |
Video Input | Analog 0.7Vpp Input Impedance: 75 Ohm | |
Sync Signal Input | Composite Sync on HS, TTL/LVTTL (N or P) Sync on Green | |
DP | Support DP 1.2 | |
3G-SDI | Support 3G/HD/SD video | |
HDMI | Support HDMI 2.0 | |
