RTD2936 Feature
CPU
| ARM(32Bit)
|
| OS | Linux |
| Memory | DDR3 1G |
| Chip packaging | LQFN128 |
| ROM | FLASH |
| D0 | HDMI1.4(300M) YUV444/RGB888 |
| D1 | HDMI1.4(300M) YUV444/RGB888 |
| D2 | HDMI1.4(300M) YUV444/RGB888 |
| A0 | YPbPr/VGA |
| A1 | CVBS/S-Video |
| USB2.0 | 2 |
| HDCP | HDCP 1.4 |
| Max Timming | 2560x1600@60hz/RGB888 |
LVDS
| 6/8bit,dual Lvds |
| Mirror/Rotation | 90/180/270 |

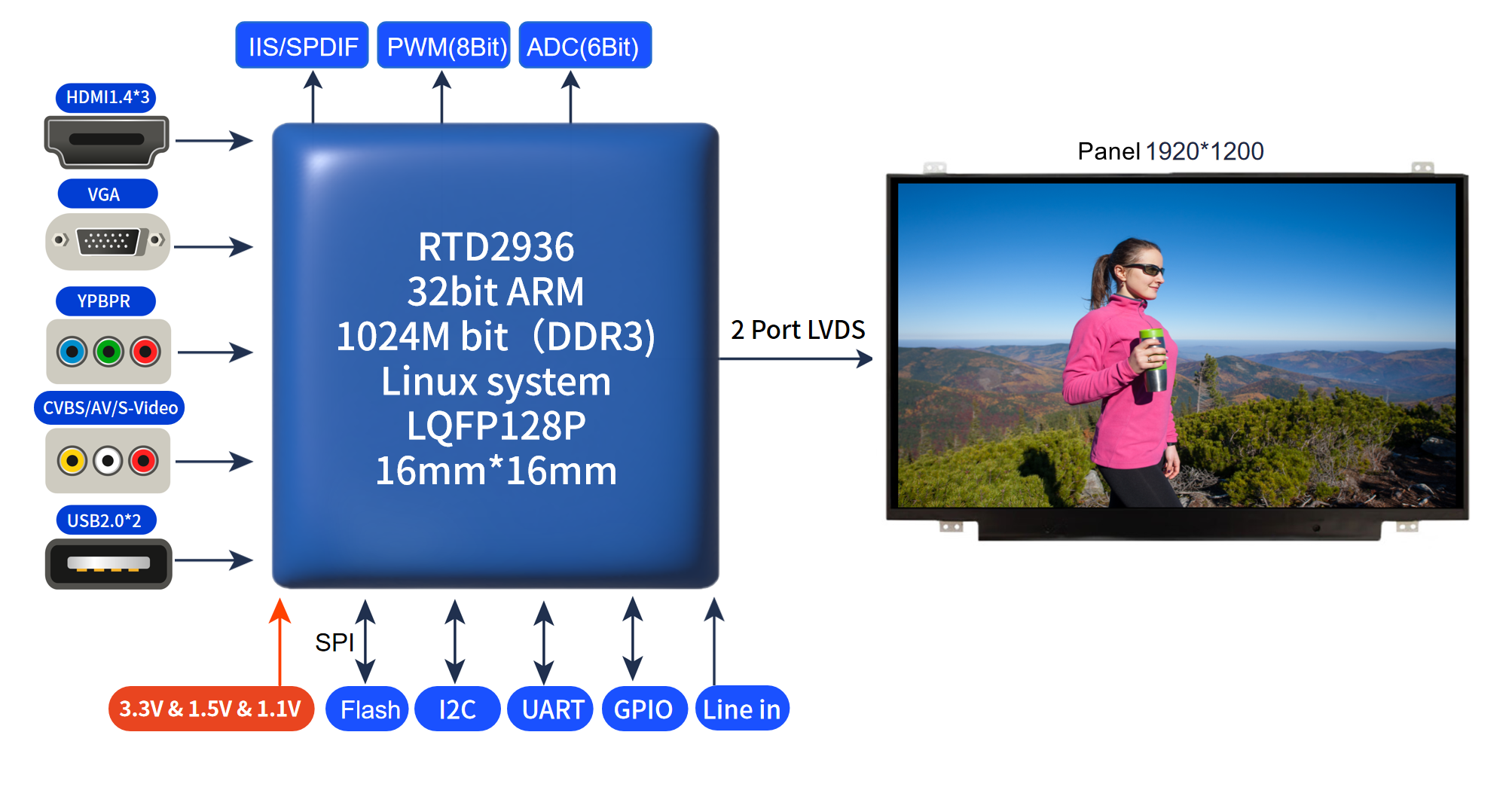

Signal sources: 3xHDMI1.4, 1xVGA, 1xYPBPR, 1xAV, 2xUSB2.0, IIS/SPDIF, 1xUART, PWM(8Bit), ADC(6Bit), IIC, GPIO, Line-in
The maximum HDMI input resolution is 3840*2160@30Hz (300MHz).
Support network streaming media protocols such as RTSP/RTMP.

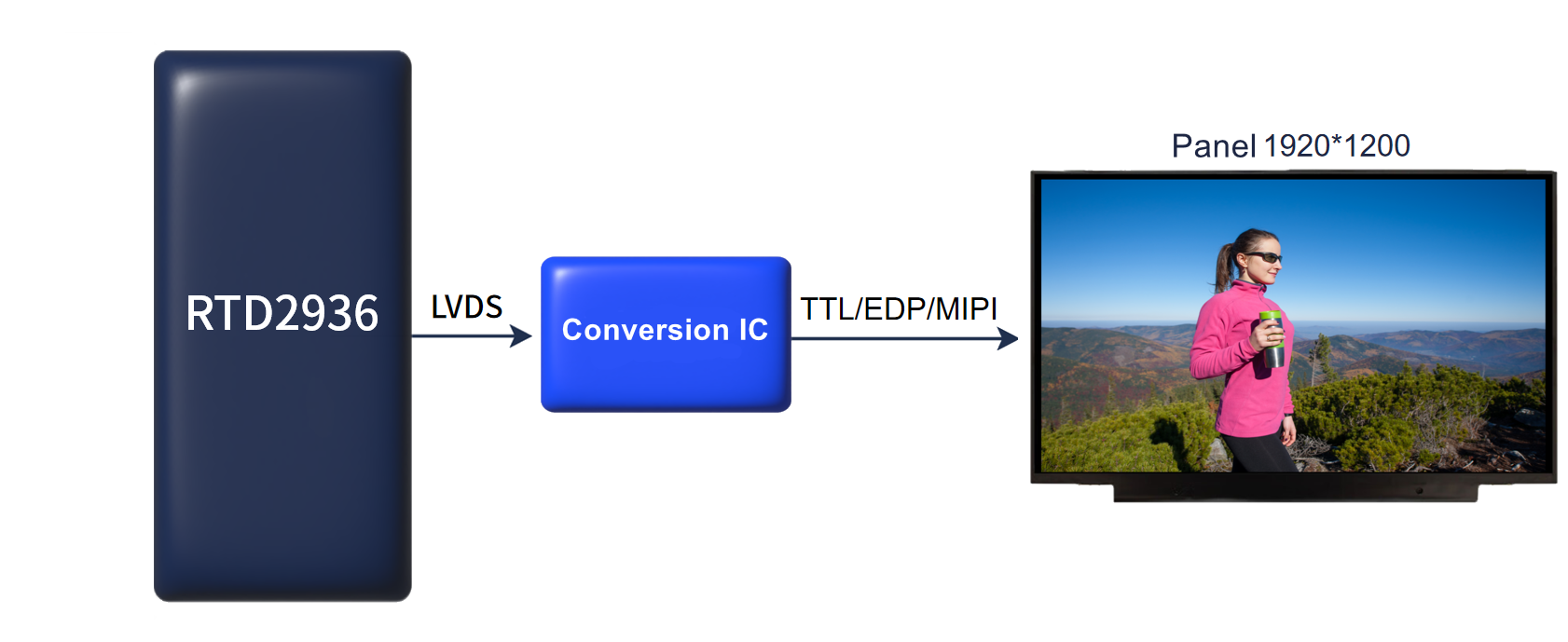

RTD2936 panel expansion
Through the conversion chip, it can support panels with EDP/MIPI/TTL interfaces.

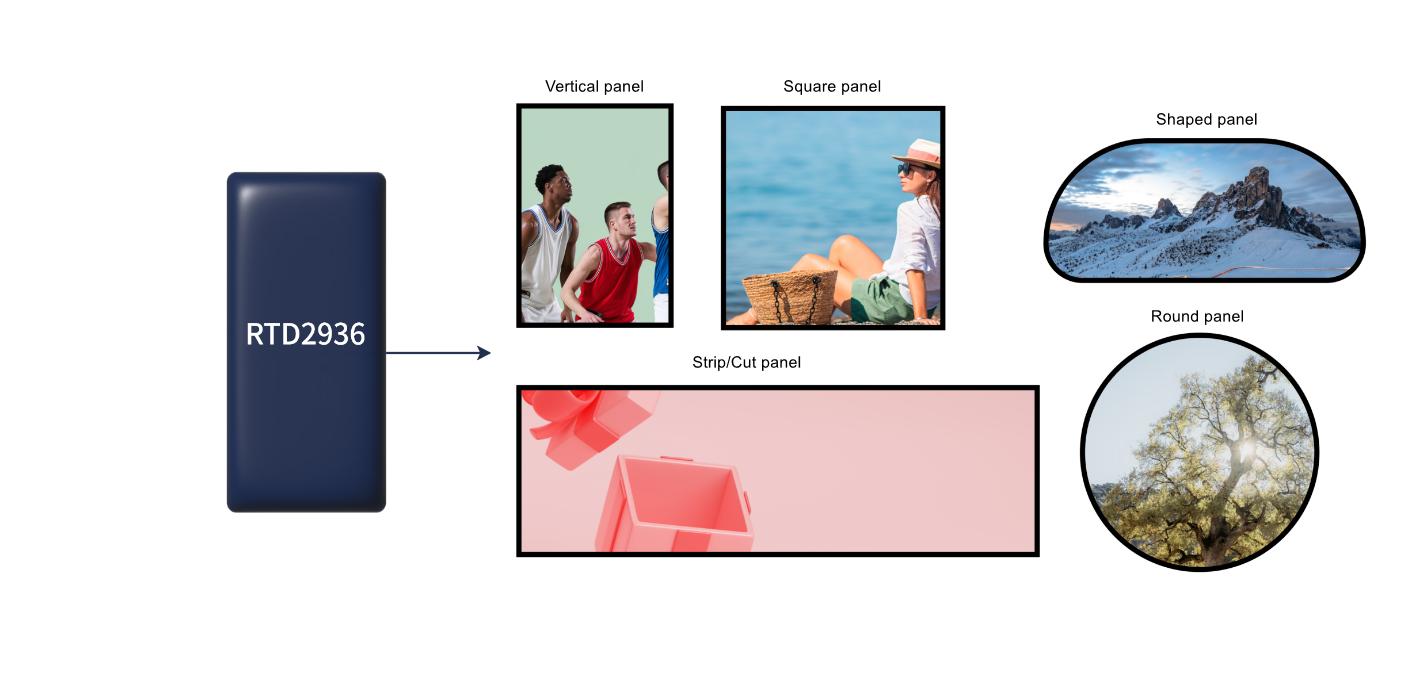

RTD2936 supported panel
Support output of various special-shaped panels such as Round panels/vertical panels/square panels/cut/strip panels.
The output resolution is 2560*1600@60Hz and is downward compatible.

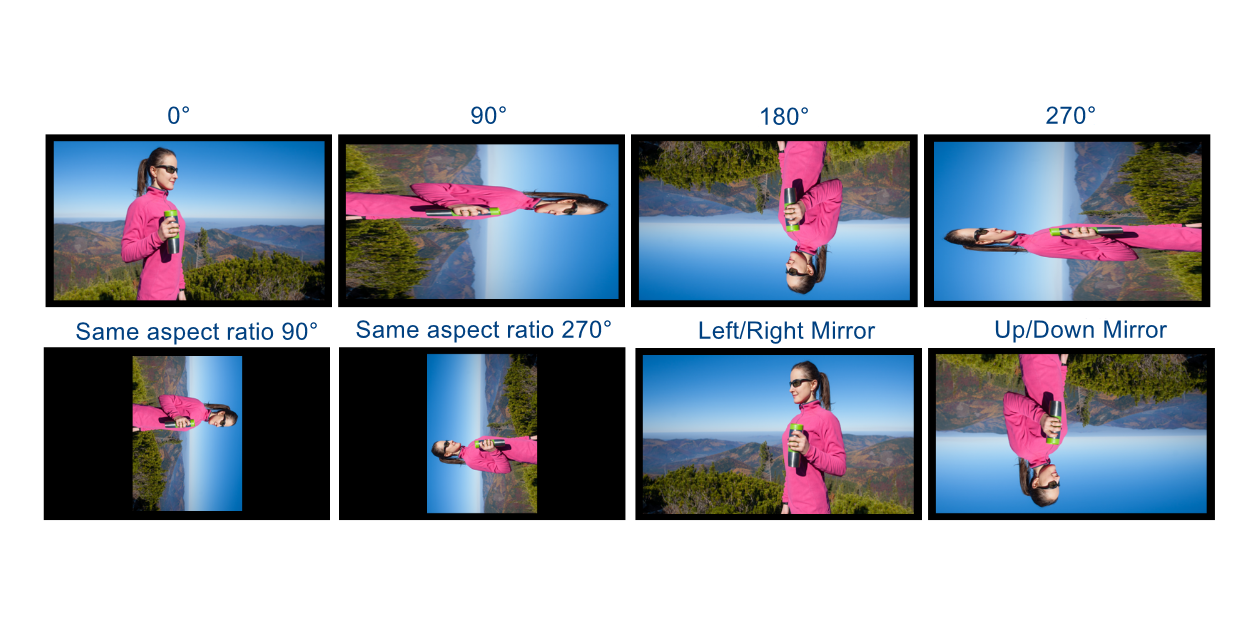

RTD2936 rotation/mirroring
The output picture and OSD support 90°/180°/270° rotation.
The output picture supports any mirroring in up, down, left and right directions.

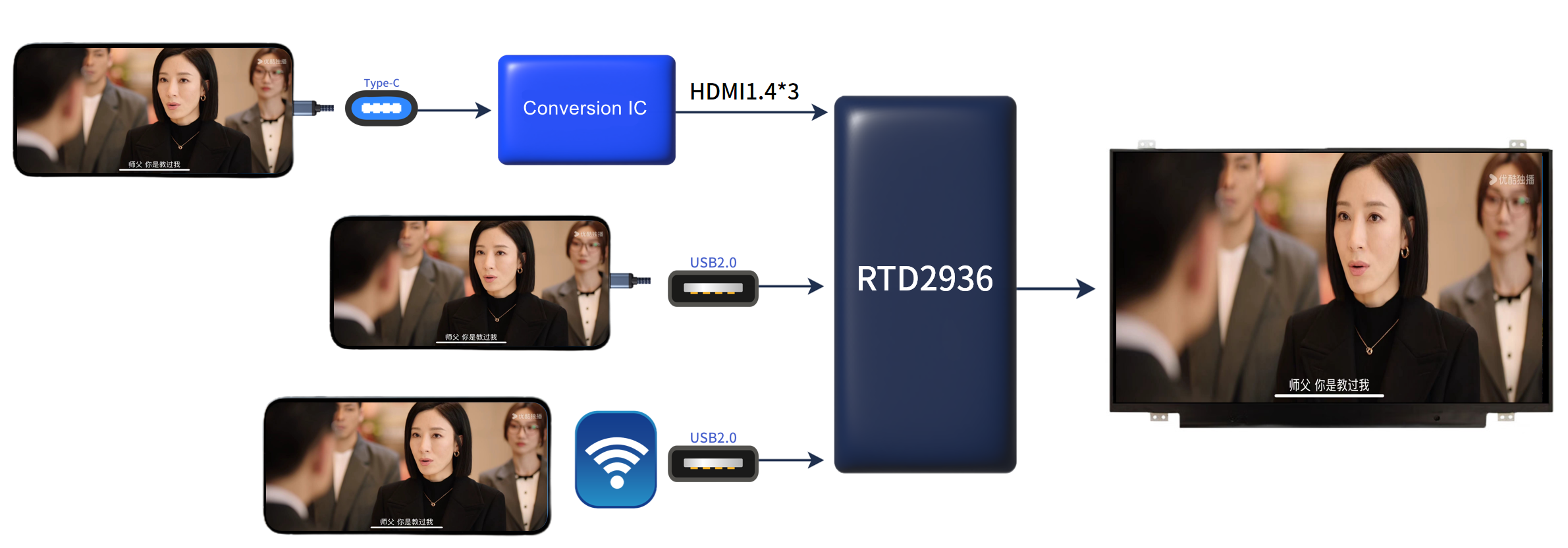

RTD2936 wired/wireless screen mirroring
Support USB wired screen mirroring and USB media player.
Support AirPlay, Mirracast, and DLNA wireless screen mirroring.
